    C series multi stage low speed centrifugal blower

    C series multi stage low speed centrifugal blower

    Product details

    Product Introduction

    On the basis of absorbing new technology inside and outside China, Changsha Blower Co.,Ltd. and Xian Jiaotong University teamed up to develop the centrifugal blowers, that include multistage low speed centrifugal blowers, single-stage low speed centrifugal blowers and single-stage high speed centrifugal blowers, three series, more than 100 models, with the capacity 50~2000m3/min and pressure rise 10~150kPa.

    ● C Series Multistage Low Speed Centrifugal Blower

    With capacity 50~1000m3/min, pressure rise 19.6~150kPa, and construction of single intaking, double supporting, multistage, the C series multistage low speed centrifugal blowers are widely used in water treatment aeration, power plant desulfurization and oxidation, melting furnace, coal washery, mine flotation, chemical gas making, vacuum, etc. They also can be used to convey special gases such as coal gas and biogas by changing construction suitably.

    Derived Models

    The following models are derived from the above three models:

    ●Sewage treatment blower capacity: 50~600m3/min    pressure rise:49.0~98kPa

    ●Desulfurization&oxidation blower   capacity: 60~800m3/minpressure rise: 49.0~150kPa

    ●Sulfur dioxide blower capacity: 200~2000m3/minpressure rise: 26.4~53.9kPa

    ●Gas-making furnace blower  capacity: 300~1500m3/minpressure rise: 23.5~34.3kPa

    ●Cupola blower capacity:50~350m3/minpressure rise: 9.8~29.4kPa

    ●Smelting furnace blower capacity:100~1000m3/minpressure rise: 49.0~150kPa

    ●Coal gas blowercapacity:100~1250m3/minpressure rise: 19.6~53.9kPa

    ●Coal flotation&washing blowercapacity:50~500m3/minpressure rise:19.6~68.6kPa

    Model Selection

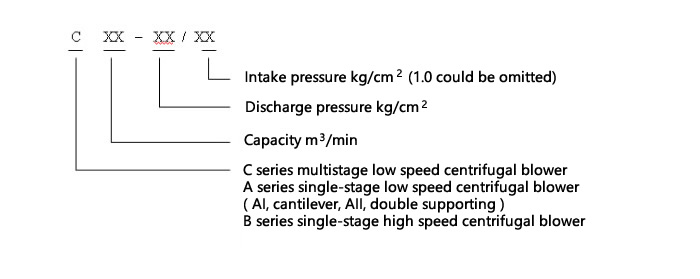

    Model Introduction

    For example:

    C300–1.7/1.0

    It means a multistage centrifugal blower, when temperature is 20℃, intake pressure is 1.0kgf/cm2(98kPa), relative humidity is 50%, the capacity is 300 m3/min, and discharge pressure is 1.7kgf/cm2(pressure rise 68.6kPa).

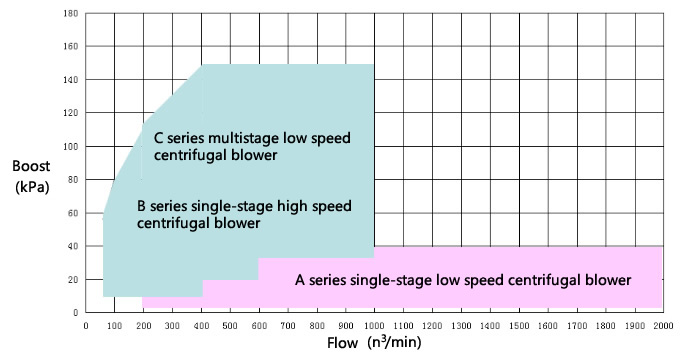

    Model Selection Drawing




    The performance range of blower could be determined approximately by capacity and pressure as drawing show, plus another conditions, a precise model could be confirmed by professionals.

    Elements of Model Selection

    ● Technical conditions

    Medium, intake conditions, capacity, pressure rise (or discharge pressure), ambient conditions.

    ●Model Selection Calculation

    If the medium is air, intake conditions and ambient conditions are as same as the catalogue conditions, the model could be selected directly according to capacity and pressure rise (or discharge pressure) among the catalogue models.

    If the medium, or intake conditions, or ambient conditions, are not as same as the catalogue conditions, (for example, the temperature or density is very different.) then the parameters of model selection should be calculated and rectified.

    (1) Ambient temperature

    The design temperature of blower is 20℃. For aeration blower, every 1℃ that intake temperature increases will lead a 0.002kgf/cm2 decline of discharge pressure. Thus, when the temperature is 40℃ in summer, the discharge pressure will decline 0.04kgf/cm2

    (1) Altitude

    The design intake pressure of blower is 1.0kgf/cm2. When the altitude is high, the capacity and discharge pressure should be rectified according to local atmosphere pressure.

    (2) Capacity Conversion

    If the standard capacity at standard condition(0℃,1.033kgf/cm2) is QN,  then the actual intake capacity at intake condition (ts,Ps) is Qs, there is a conversion formula:

    Qs=( ts+273)/273×1.033/ Ps×QN

    ts: intake temperature,℃

    Ps: intake pressure,kgf/cm2

    (3) Conversion between pressure unit in common use

    9.8kPa=0.1 kgf/cm2=1000mmH2O=98mbar=0.0967atm=73.5mmHg

    ● Features:

    ◎ Due to the advanced design of aerodynamic, the impeller is of high efficiency.

    ◎ The casing is of horizontal division welding structure, simple and light in weight.

    ◎ Due to flat performance curve, performance can be easily adjusted.

    ◎ Reasonable and advanced construction, reduces the wearing parts, and makes the operation and maintenance convenient.

    ● Typical Performance Data of Multistage Centrifugal Blower

    Type

    deliver medium

    Intake condition

    pressure rise (kpa)

    La(kW)

    Po(kW)

    capacity (m3/min)

    pressure (kgf/cm2)

    temperature (℃)

    C50-1.2

    air

    50

    1.0

    20

    19.6

    21

    30

    C50-1.3

    air

    50

    1.0

    20

    29.4

    33.5

    45

    C50-1.4

    air

    50

    1.0

    20

    39.2

    43.7

    55

    C50-1.5

    air

    50

    1.0

    20

    49.0

    53.2

    75

    C50-1.6

    air

    50

    1.0

    20

    58.8

    67.9

    90

    C60-1.2

    air

    60

    1.0

    20

    19.6

    27.1

    37

    C60-1.3

    air

    60

    1.0

    20

    29.4

    40.4

    55

    C60-1.4

    air

    60

    1.0

    20

    39.2

    50.7

    75

    C60-1.5

    air

    60

    1.0

    20

    49.0

    69.1

    90

    C60-1.6

    air

    60

    1.0

    20

    58.8

    79.1

    110

    C80-1.2

    air

    80

    1.0

    20

    19.6

    35.2

    45

    C80-1.3

    air

    80

    1.0

    20

    29.4

    53.3

    75

    C80-1.4

    air

    80

    1.0

    20

    39.2

    70.7

    90

    C80-1.5

    air

    80

    1.0

    20

    49.0

    89.5

    110

    C80-1.6

    air

    80

    1.0

    20

    58.8

    104

    132

    C80-1.7

    air

    80

    1.0

    20

    68.6

    120

    160

    C100-1.2

    air

    100

    1.0

    20

    19.6

    45.7

    55

    C100-1.3

    air

    100

    1.0

    20

    29.4

    68.0

    90

    C100-1.4

    air

    100

    1.0

    20

    39.2

    90.0

    110

    C100-1.5

    air

    100

    1.0

    20

    49.0

    111

    132

    C100-1.6

    air

    100

    1.0

    20

    58.8

    131

    160

    C100-1.7

    air

    100

    1.0

    20

    68.6

    153

    185

    C125-1.2

    air

    125

    1.0

    20

    19.6

    57

    75

    C125-1.3

    air

    125

    1.0

    20

    29.4

    85.0

    110

    C125-1.4

    air

    125

    1.0

    20

    39.2

    111

    132

    C125-1.5

    air

    125

    1.0

    20

    49.0

    137

    160

    C125-1.6

    air

    125

    1.0

    20

    58.8

    163

    185

    C125-1.7

    air

    125

    1.0

    20

    68.6

    188

    220

    C150-1.2

    air

    150

    1.0

    20

    19.6

    66.2

    90

    C150-1.3

    air

    150

    1.0

    20

    29.4

    97.7

    132

    C150-1.4

    air

    150

    1.0

    20

    39.2

    129

    160

    C150-1.5

    air

    150

    1.0

    20

    49.0

    160

    185

    C150-1.6

    air

    150

    1.0

    20

    58.8

    191

    220

    C150-1.7

    air

    150

    1.0

    20

    68.6

    221.3

    250

    C150-1.8

    air

    150

    1.0

    20

    78.4

    249.1

    315

    C200-1.2

    air

    200

    1.0

    20

    19.6

    87.6

    110

    C200-1.3

    air

    200

    1.0

    20

    29.4

    129.3

    160

    C200-1.4

    air

    200

    1.0

    20

    39.2

    171

    200

    C200-1.5

    air

    200

    1.0

    20

    49.0

    212

    250

    C200-1.6

    air

    200

    1.0

    20

    58.8

    241

    280

    C200-1.7

    air

    200

    1.0

    20

    68.6

    279

    355

    C200-1.8

    air

    200

    1.0

    20

    78.4

    327

    400

    C250-1.2

    air

    250

    1.0

    20

    19.6

    109

    132

    C250-1.3

    air

    250

    1.0

    20

    29.4

    161

    185

    C250-1.4

    air

    250

    1.0

    20

    39.2

    212

    250

    C250-1.5

    air

    250

    1.0

    20

    49.0

    263

    315

    C250-1.6

    air

    250

    1.0

    20

    58.8

    312

    355

    C250-1.7

    air

    250

    1.0

    20

    68.6

    360

    450

    C250-1.8

    air

    250

    1.0

    20

    78.4

    406

    500

    C300-1.3

    air

    300

    1.0

    20

    29.4

    191

    220

    C300-1.4

    air

    300

    1.0

    20

    39.2

    251

    315

    C300-1.5

    air

    300

    1.0

    20

    49.0

    311

    400

    C300-1.6

    air

    300

    1.0

    20

    58.8

    369

    450

    C300-1.7

    air

    300

    1.0

    20

    68.6

    426

    500

    C300-1.8

    air

    300

    1.0

    20

    78.4

    480

    560

    C300-1.9

    air

    300

    1.0

    20

    88.2

    532

    630

    C350-1.3

    air

    350

    1.0

    20

    29.4

    150

    185

    C350-1.4

    air

    350

    1.0

    20

    39.2

    221

    250

    C350-1.5

    air

    350

    1.0

    20

    49.0

    291

    355

    C350-1.6

    air

    350

    1.0

    20

    58.8

    361

    450

    C350-1.7

    air

    350

    1.0

    20

    68.6

    428

    500

    C350-1.8

    air

    350

    1.0

    20

    78.4

    552

    630

    C350-1.9

    air

    350

    1.0

    20

    88.2

    611

    710

    C400-1.3

    air

    400

    1.0

    20

    29.4

    249

    315

    C400-1.4

    air

    400

    1.0

    20

    39.2

    328

    400

    C400-1.5

    air

    400

    1.0

    20

    49.0

    404

    500

    C400-1.6

    air

    400

    1.0

    20

    58.8

    482

    560

    C400-1.7

    air

    400

    1.0

    20

    68.6

    557

    630

    C400-1.8

    air

    400

    1.0

    20

    78.4

    626

    710

    C400-1.9

    air

    400

    1.0

    20

    88.2

    694

    800

    C400-2

    air

    400

    1.0

    20

    98

    775

    900

    C500-1.5

    air

    500

    1.0

    20

    49.0

    505

    630

    C500-1.6

    air

    500

    1.0

    20

    58.8

    603

    710

    C500-1.7

    air

    500

    1.0

    20

    68.6

    701

    800

    C500-1.8

    air

    500

    1.0

    20

    78.4

    789

    900

    C500-1.9

    air

    500

    1.0

    20

    88.2

    874

    1000

    C500-2.0

    air

    500

    1.0

    20

    98

    969

    1120

    C500-2.1

    air

    500

    1.0

    20

    107.8

    1066

    1250

    C600-1.5

    air

    600

    1.0

    20

    49.0

    606

    710

    C600-1.6

    air

    600

    1.0

    20

    58.8

    723

    900

    C600-1.7

    air

    600

    1.0

    20

    68.6

    841

    1000

    C600-1.8

    air

    600

    1.0

    20

    78.4

    946

    1120

    C600-1.9

    air

    600

    1.0

    20

    88.2

    1048

    1250

    C600-2.0

    air

    600

    1.0

    20

    98

    1162

    1400

    C600-2.1

    air

    600

    1.0

    20

    107.8

    1269

    1400

    C600-2.2

    air

    600

    1.0

    20

    117.6

    1374

    1600

    C600-2.5

    air

    600

    1.0

    20

    147

    1635

    1800

    C800-1.5

    air

    800

    1.0

    20

    49

    805

    900

    C800-2.0

    air

    800

    1.0

    20

    98

    1549

    1800

    C800-2.5

    air

    800

    1.0

    20

    147

    2190

    2500

    C1000-1.5

    air

    1000

    1.0

    20

    49

    1060

    1250

    C1000-2.0

    air

    1000

    1.0

    20

    98

    1936

    2240

    C1000-2.5

    air

    1000

    1.0

    20

    147

    2738

    2500

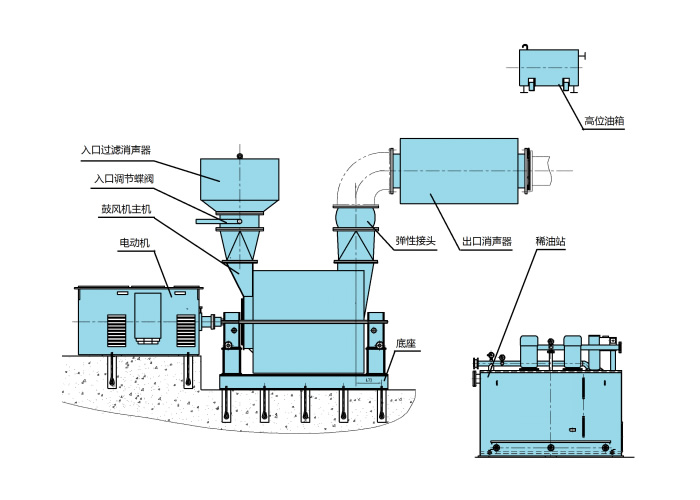

    ●  Layout of Multistage Centrifugal Blower

    Layout of Multistage Centrifugal Blower (rolling bearing)


    Layout of Multistage Centrifugal Blower(sliding bearing)




    ● Dimensions of Multistage Centrifugal Blower

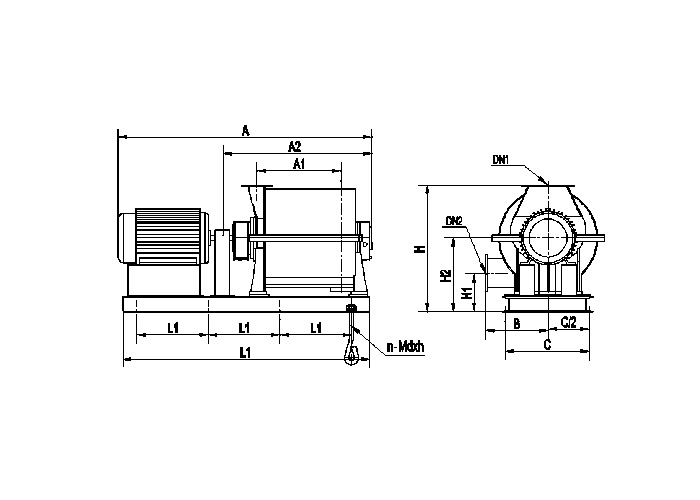

    Installation Dimensions of C Series Multistage Low Speed Centrifugal Blower(rolling bearing)

    (This is only for reference, the foundation should be built on the basis of contract drawing.)




    Type

    A

    A1

    A2

    B

    C

    H2

    H1

    H

    L

    L1

    DN1

    DN2

    n-Mdxh

    C60-1.4

    2670

    950

    1590

    700

    880

    885

    460

    1635

    2300

    650

    250

    250

    8-M24x500

    C60-1.5

    2780

    1050

    1680

    700

    880

    885

    460

    1635

    2400

    700

    250

    250

    8-M24x500

    C80-1.5

    2980

    1050

    1600

    700

    880

    885

    460

    1635

    2600

    750

    300

    250

    8-M24x500

    C80-1.7

    3110

    1415

    1800

    700

    880

    885

    460

    1635

    3000

    900

    300

    250

    8-M24x500

    C100-1.2

    2440

    710

    1510

    800

    1150

    980

    400

    1635

    2000

    600

    350

    300

    8-M24x500

    C100-1.3

    2740

    890

    1690

    800

    1150

    980

    400

    1635

    2300

    650

    350

    300

    8-M24x500

    C100-1.4

    3110

    1070

    1870

    800

    1150

    980

    400

    1635

    2400

    700

    350

    300

    8-M24x500

    C100-1.5

    3180

    1070

    1870

    800

    1150

    980

    400

    1635

    2500

    700

    350

    300

    8-M24x500

    C100-1.6

    3360

    1250

    2050

    800

    1150

    980

    400

    1635

    3000

    900

    350

    300

    8-M24x630

    C100-1.7

    3540

    1430

    2230

    800

    1150

    980

    400

    1635

    3000

    900

    350

    300

    8-M24x630

    C125-1.2

    2510

    710

    1510

    800

    1150

    980

    400

    1635

    2100

    600

    350

    300

    8-M24x500

    C125-1.3

    2930

    890

    1690

    800

    1150

    980

    400

    1635

    2500

    700

    350

    300

    8-M24x500

    C125-1.4

    3180

    1070

    1870

    800

    1150

    980

    400

    1635

    2800

    800

    350

    300

    8-M24x500

    C125-1.5

    3180

    1070

    1870

    800

    1150

    980

    400

    1635

    2800

    800

    350

    300

    8-M24x500

    C125-1.6

    3360

    1250

    2050

    800

    1150

    980

    400

    1635

    3000

    900

    350

    300

    8-M24x630

    C125-1.7

    3770

    1430

    2230

    800

    1150

    980

    400

    1635

    3150

    900

    350

    300

    8-M24x630

    C150-1.2

    2450

    600

    1400

    800

    1150

    980

    495

    1830

    2300

    650

    400

    350

    8-M24x630

    C150-1.3

    2910

    800

    1600

    800

    1150

    980

    495

    1830

    2500

    700

    400

    350

    8-M24x630

    C150-1.4

    3110

    1000

    1800

    800

    1150

    980

    495

    1830

    2750

    800

    400

    350

    8-M30x800

    C150-1.5

    3310

    1200

    2000

    800

    1150

    980

    495

    1830

    2950

    900

    400

    350

    8-M30x800

    C150-1.6

    3540

    1200

    2000

    800

    1150

    980

    495

    1830

    2950

    900

    400

    350

    8-M30x800

    C150-1.7

    3760

    1400

    2200

    800

    1150

    980

    495

    1830

    3150

    900

    400

    350

    8-M30x800

    C150-1.8

    3940

    1600

    2400

    800

    1150

    980

    495

    1830

    3350

    1000

    400

    350

    8-M30x800

    C200-1.2

    2740

    660

    1500

    800

    1200

    980

    495

    1830

    2400

    700

    400

    400

    8-M24x630

    C200-1.3

    3010

    860

    1700

    800

    1200

    980

    495

    1830

    2700

    800

    400

    400

    8-M24x630

    C200-1.4

    3210

    1060

    1900

    800

    1200

    980

    495

    1830

    2900

    850

    400

    400

    8-M24x630

    C200-1.5

    3640

    1250

    2100

    800

    1200

    980

    495

    1830

    3200

    900

    400

    400

    8-M30x800

    C200-1.6

    3840

    1450

    2300

    800

    1200

    980

    495

    1830

    3400

    950

    400

    400

    8-M30x800

    C200-1.7

    4450

    1450

    2300

    800

    1200

    980

    495

    1830

    3800

    850

    400

    400

    10-M30x800

    C200-1.8

    4660

    1660

    2510

    800

    1200

    980

    495

    1830

    4000

    900

    400

    400

    10-M30x800

    C250-1.2

    2740

    600

    1430

    800

    1250

    1050

    620

    1900

    3400

    950

    500

    450

    8-M30x800

    C250-1.3

    2945

    790

    1635

    800

    1250

    1050

    620

    1900

    3450

    950

    500

    450

    8-M30x800

    C250-1.4

    3075

    790

    1635

    800

    1250

    1050

    620

    1900

    3650

    850

    500

    450

    10-M30x800

    C250-1.5

    3275

    990

    1835

    800

    1250

    1050

    620

    1900

    3900

    850

    500

    450

    10-M30x800

    C250-1.6

    4175

    1140

    2025

    800

    1250

    1050

    620

    1900

    4050

    900

    500

    450

    10-M30x800

    C250-1.7

    4215

    1180

    2065

    800

    1250

    1050

    620

    1900

    4050

    900

    500

    450

    10-M30x800

    C250-1.8

    4385

    1350

    2235

    800

    1250

    1050

    620

    1900

    4250

    950

    500

    450

    10-M30x800

    C300-1.5

    4155

    990

    1835

    800

    1250

    1050

    620

    1900

    3950

    900

    500

    450

    10-M30x800

    C300-1.7

    4385

    1180

    2065

    800

    1250

    1050

    620

    1900

    4050

    900

    500

    450

    10-M30x800

    ● The supply scope of multistage centrifugal blower

    No.

    Standard

    Optional

    Name

    Qty

    Name

    Qty

    1

    blower

    1

    Inlet silencer

    1

    2

    Lubricating device

    1

    Discharge silencer

    1

    3

    Motor

    1

    Outlet flexible joint

    1

    4

    Inlet control valve

    1

    Outlet electric butterfly valve

    1

    5

    Coupling

    1

    Atmospheric silencer

    1

    6

    Coupling protector

    1

    Atmospheric electric butterfly valve

    1

    7

    base

    1

    Check valve

    1

    8

    Anchor bolt,nut,washer

    1

    Primary instrument

    1

    9

    Spare parts

    1

    Spot control cabinet

    1

    *For the blower with rolling bearing, the lubricating device is included in the blower, for the blower with sliding bearing, the thin oil station is equipped.

    欧美精品一级品,AAA精品黄色,精品H无码专区在线视频,国外呦女精品
